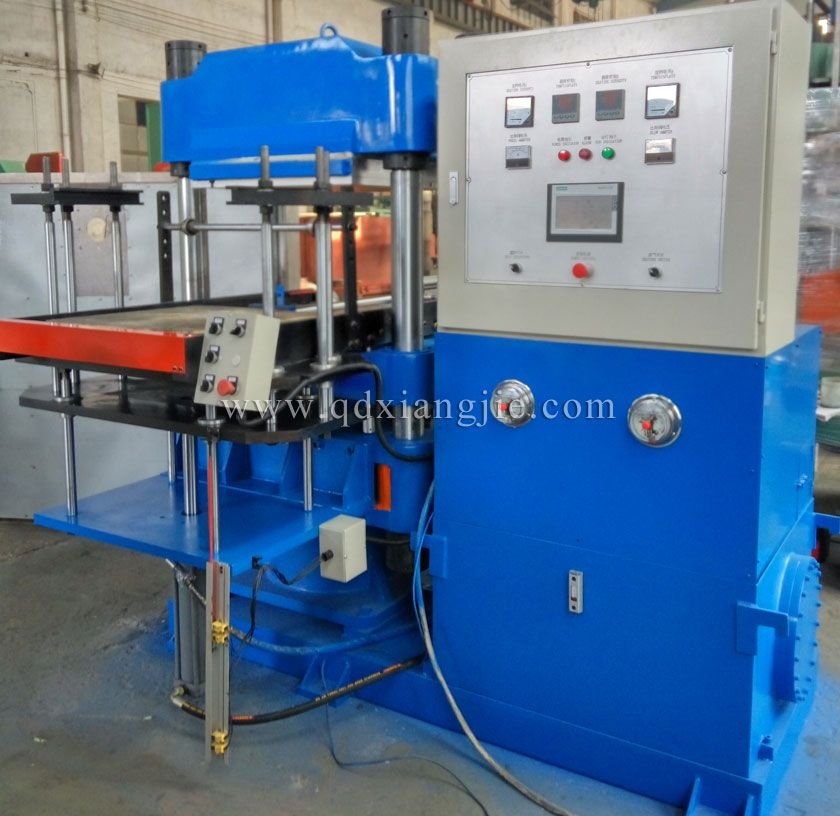

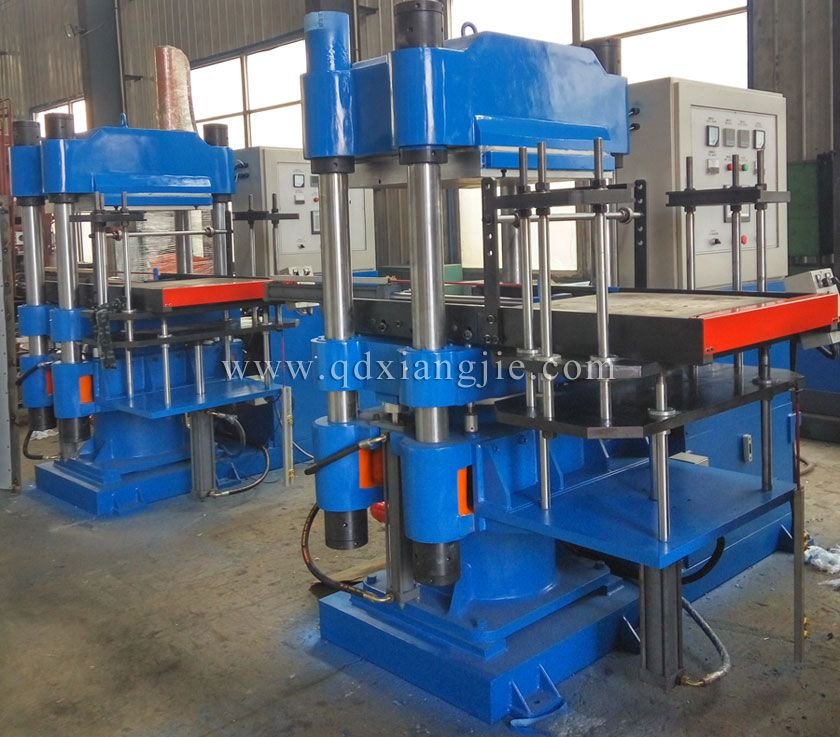

XLB-D 700x700mm/200 ton column vulcanizer

All kinds of column vulcanizer is one of the company's leading products, 4 kinds of products have obtained national patents, in 2018, the column plate vulcanizer produced by our company won the 2018 Qingdao "Specialized New Special Products". The products sell well all over the country and are exported to more than 100 countries and regions in the world. Among them, it has established a long-term product supply and demand relationship with a foreign Fortune 500 company, and has provided a large number of vulcanizer equipment for the company in the past few years; For Hengshui Hengxiang Technology Co., Ltd. and Hengshui Zhentai Co., Ltd., dozens of column-type plate vulcanizers of various specifications were produced; Exported large plate vulcanizers to many enterprises in South Africa.

Technical Parameters:

1. Stand-alone column structure
2. Hot plate 700x700x70mm
3. Spacing: 400mm
4. Number of layers: 1 layer
5. Plunger stroke: 400mm
6. Maximum working pressure: 200 tons
7. Hydraulic cylinder specification: 400mm
8. System working pressure 0--16 (adjustable)
9. Configure oil pump: Taiwan Kaijia vane pump
10. The system pressure drops by ≦15%, and the pressure is automatically supplemented.
11. Hydraulic medium: 46# wear-resistant hydraulic oil, oil tank volume: 300L
12. Motor power: 5.5 (kw)
13. Working temperature: normal - 250 °C, temperature control error ≦± 3 °C
14. Control mode: . (Automatic/Manual)
15. Configure automatic push-pull mold workbench + 2RT mold opening + flap
16. Electrical appliances: Schneider, Siemens PLC + touch screen
