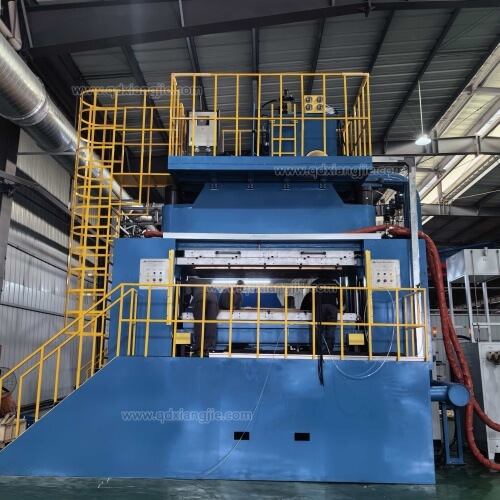

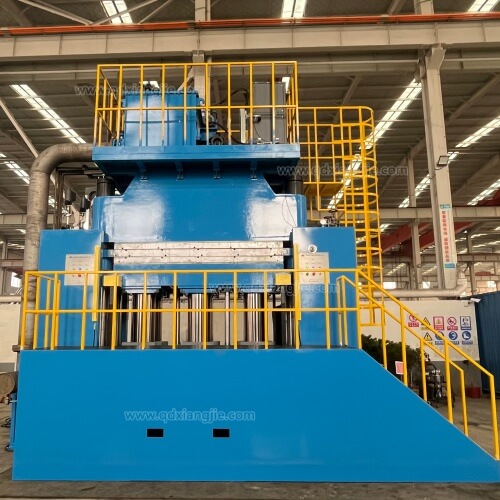

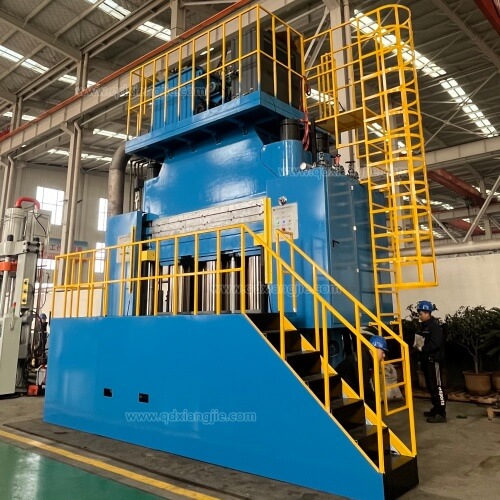

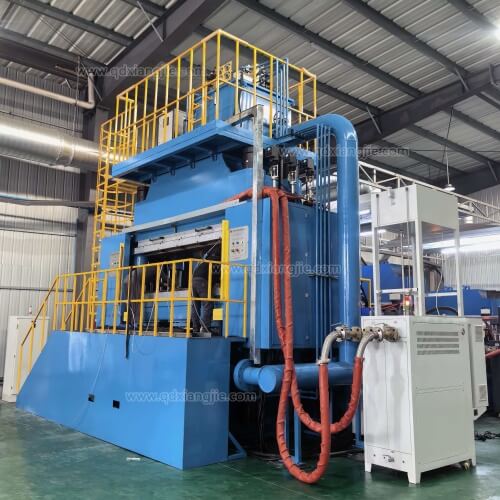

Column Rubber Vulcanizing Press
The vulcanizer is equipped with an advanced control system that allows for precise monitoring and adjustment of the vulcanization process.
This includes temperature, pressure, and timing control, ensuring that the sealing rings are vulcanized to the exact specifications required.
Description
Designed for applications that demand extreme dimensional accuracy, tight thickness tolerances, and flawless surface finish, our High-Precision Column Type Vulcanizing Press delivers exceptional mechanical stability and thermal uniformity.
Unlike standard presses, our 4-column hydraulic press incorporates precision-ground alloy steel columns and extended self-lubricating guiding bushes. This guarantees exceptional parallelism across the upper and lower platens during the entire pressing stroke, preventing mold deflection and material flash on high-precision rubber components.
Key Technical & Engineering Highlights:
Exceptional Platen Parallelism: High-precision 4-column guiding system ensures platen parallelism within <= +/-0.1 mm, delivering uniform pressure across the entire working surface.
Rigid Column Architecture: Hard-chrome plated, high-tensile steel columns provide zero-flex structural integrity under maximum hydraulic pressure.
Precision Temperature Control: Multi-zone heating system maintains thermal uniformity across the platens within <= +/-1°C to +/-3°C, eliminating internal stresses and curing defects.
Micro-Step Closed-Loop Hydraulics: Advanced PLC-controlled hydraulic system supports multi-stage closing, precise pressure holding, and repeatable positioning accuracy down to +/-0.05 mm.
CE-Compliant Safety System: Equipped with ergonomic two-hand operation control boxes with protective shrouds, safety light curtains, and emergency power-off interlocks.

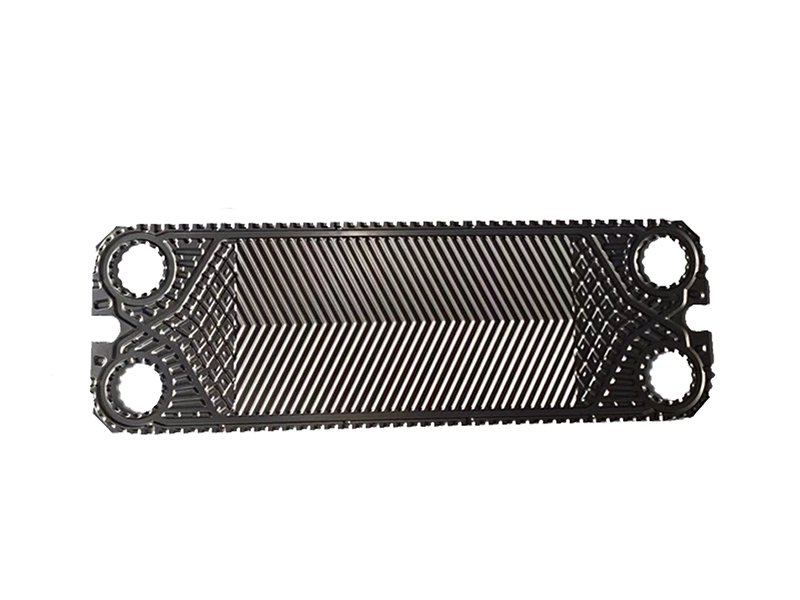

Plate Heat Exchanger (PHE) Manufacturing: Deep drawing and single-stroke forming for stainless steel, titanium, and special alloy exchanger plates.

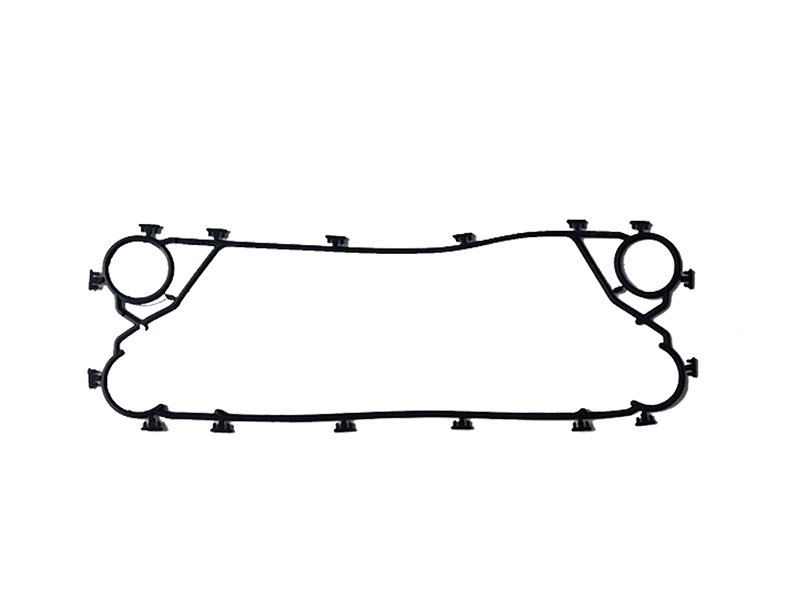

PHE Rubber Gaskets & Seals: High-precision vulcanization for EPDM, NBR, and FKM heat exchanger sealing gaskets with zero flash.
High-Spec Industrial Rubber Molding: Aerospace, automotive, and high-voltage electrical rubber components requiring tight dimensional tolerances.
The Main Technical Parameter
| Type | XLB-Q4200X1600 | XLB-Q4000X1600 | XLB-Q3500X1500 |
| Total Pressure(Tons) | 2000 | 2000 | 1500 |
| Hot plate specifications(mm) | 4200X1600 | 4000X1600 | 3500X1500 |
| Working spacing(mm) | 400 | 400 | 400 |
| Working layers | 2 | 2 | 2 |
| Piston Stroke(mm) | 800 | 800 | 800 |
| Platen Parallelism | ≤±0.1mm | ≤±0.1mm | ≤±0.1mm |
| Temperature Uniformity | ≤±2℃ | ≤±2℃ | ≤±2℃ |
Need a Custom High-Precision Press Engineering Solution?
Whether you require specialized platen dimensions, multi-daylight configurations, or custom pressure holding specs, our technical team is ready to design a press tailored to your exact manufacturing tolerances.
