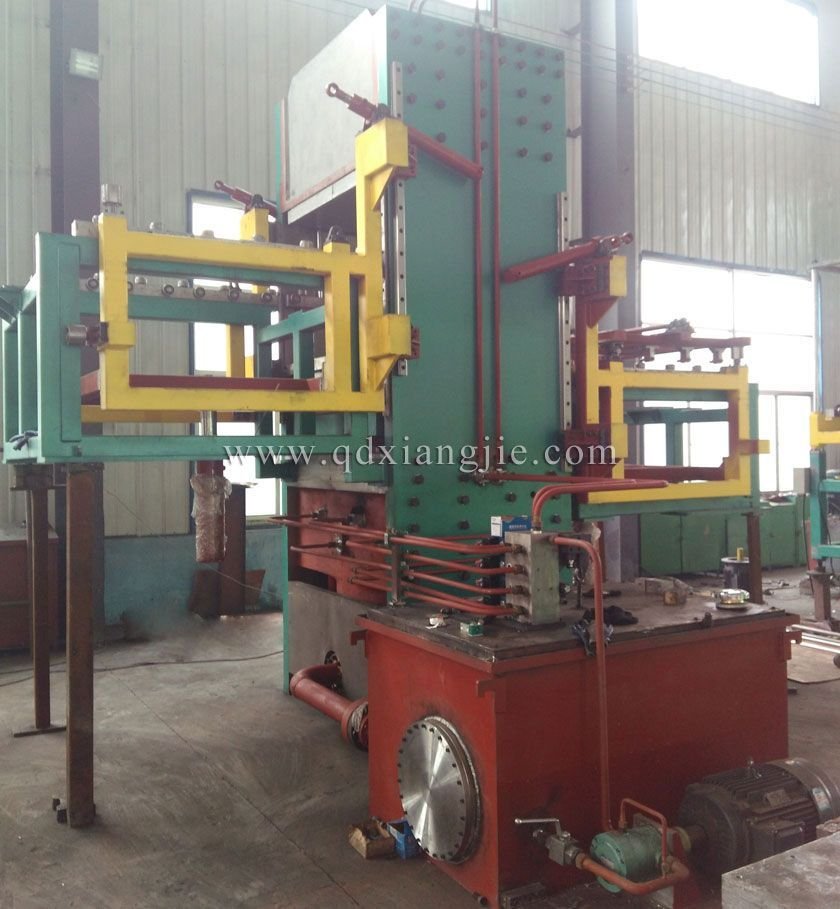

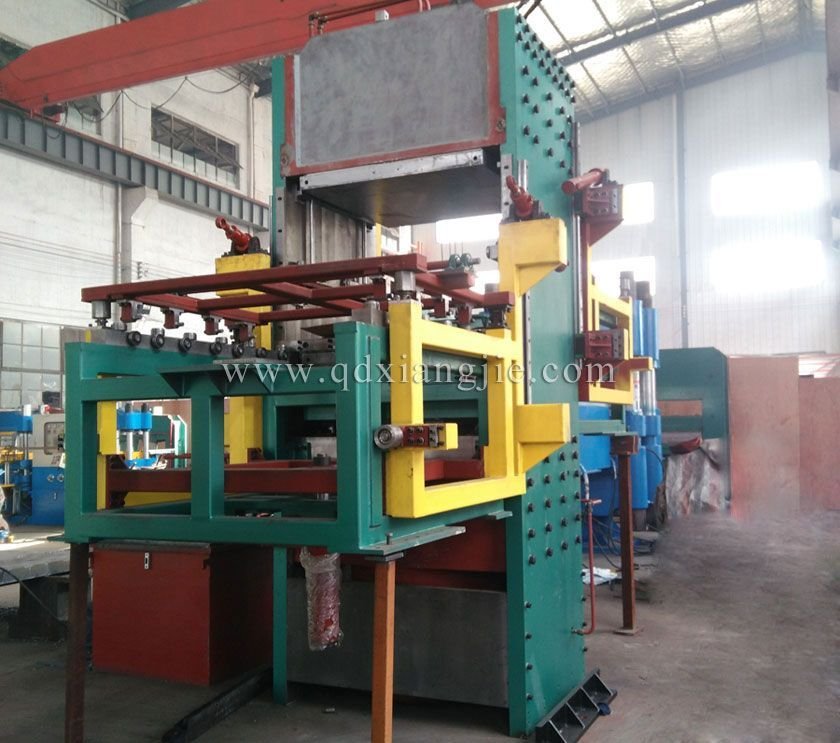

Exported Czech Republic 1200x1200mm side plate vulcanizer



The side plate vulcanizer jointly developed with Qingdao University of Science and Technology is also one of the company's leading products, and has obtained 3 national patents. The production scale and R&D technology level of the product are among the best in the industry.

In recent years, it has successively produced 33 side plate vulcanizers of various specifications for Hebei Taiwei Company; It produces more than 20 side plate solid tire vulcanizers for Comorra-Sulita Company at one time, and more than 20 large-tonnage side plate vulcanizers for several companies in the United States.


Technical Parameters:

pressure

1000 ton

Hot plate size

1200x1200x80mm

spacing

400 mm

Number of layers

2

Plunger stroke

800 mm

System pressure

20.0 Mpa

Plunger diameter

Φ800 mm

Number of plungers

1

Motor power

15kw
