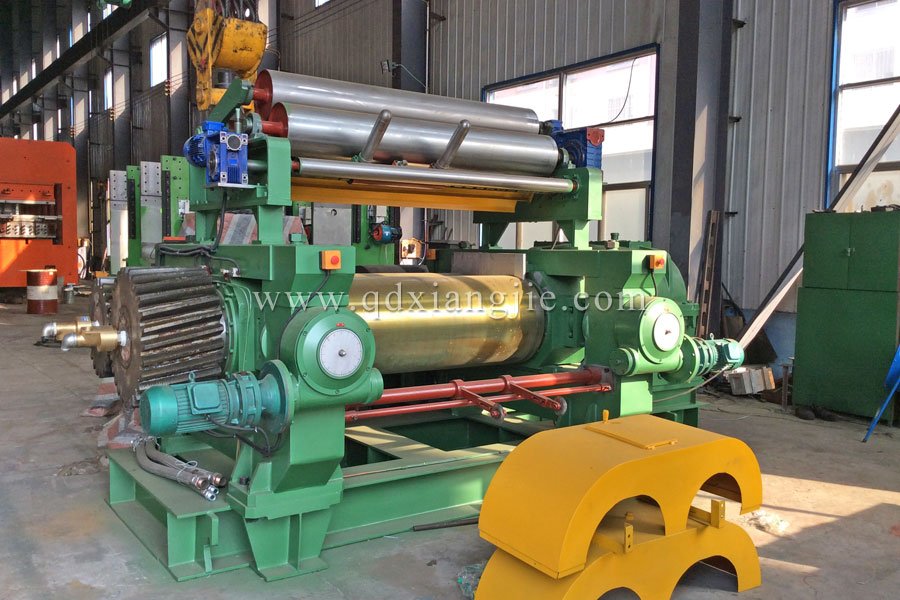

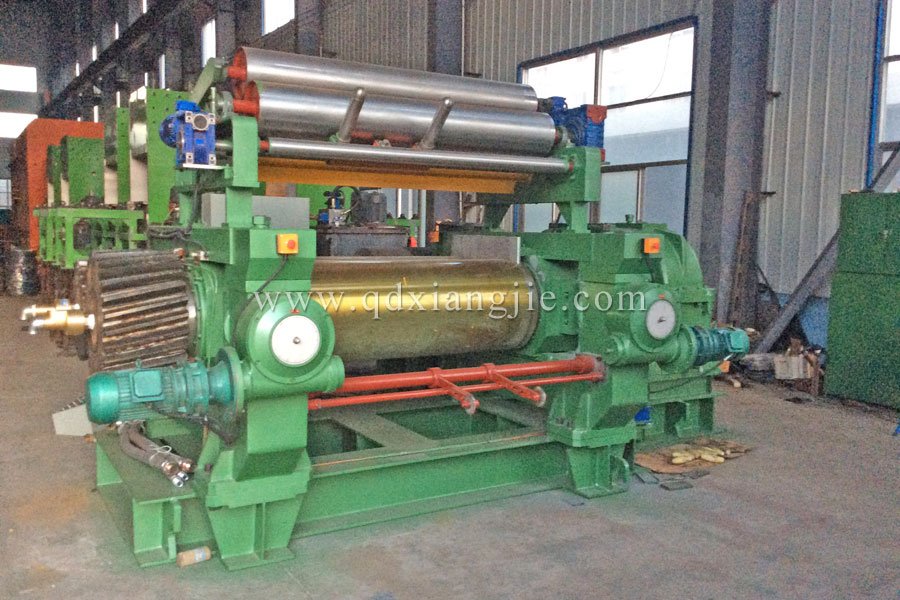

XK-400 open mill

The open mill is an auxiliary product of the company, mainly producing XK150-XK660 series products, and 70% of the products are sold to foreign markets.

Technical Parameters:

1. The diameter of the roller ......................................................¢400mm
2. The working length of the roller is ................................................ 1000mm
3, roller speed ratio...................................................... 1:1.27
4. The linear speed of the front roller .......................................... 18.65m/min
5. Distance adjustment range................................................... 0.1-10mm
6. The amount of material charged at one time (varies depending on the material)........................... 18-35kg
7. Motor power...................................................... 37kw
8. Baffle plate form.............................................
Axially movable 9. Dimensions (LxWxH)............... 4250x1850x1770（mm）
