Dispersion kneader

fabric core conveyor belt production line (1800X12600-8000)

1800X12600-8000T

Conveyor Belt Production Line(Down-Press)

1750*10000 Down-Press Rubber Conveyor Belt Production Line Exported for Dunlop

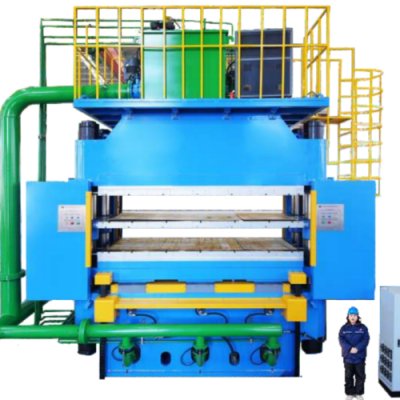

The conveyor belt vulcanizing machine is designed to vulcanize conveyor belts including nylon conveyor belts, fire-proof conveyor belts, wire rope conveyor belts, etc. The vulcanizer is highly automated and compact.

Fabric conveyor belt production line

The wire rope/fabric core conveyor belt production line is one of the company's main products, and two of them have won national invention patents. Four products have been approved by the Qingdao Municipal Commission of Economy and Information Technology for 2017/2018 Qingdao Enterprise Technology Innovation Key Project. In the past few years, the company has produced more than 100 conveyor belt production lines for domestic and foreign customers, including: 15 conveyor belt production lines for Qingdao Global Company; 9 production lines were produced for Zhejiang Sanwei Company; Produced 6 production lines for Shandong Longyuan Company; And has been exported to foreign production lines up to 11.

Conveyor belt production line

The whole line includes creel,tension station,fixing carding,forming car,front clamping device,main vulcanizing press,middle clamping device,stretching machine, hydraulic cuting machine,take-up device packing machine and other equipment. Electric control system adopts PLC control,it can achieve manual and automatic mode.

Full automatic conveyor belt forming line

The whole production line is composed of crimping guide device, cushion crimping device, hanging rack, traction pressing device, workbench, edge pressing device, edge cutting rubber device, brushing paste device, photoelectric polarization device, baseband correction device, control system, etc. The products are mainly used for nylon belts, EP belts, cotton canvas belts, layered belt forming machines, conveyor belts glue. The products are sold all over the country and exported to India, Egypt, Viet Nam and other countries.

Type		model	X(S)N-20×32	X(S)N-25×32	X(SN-35×30	X(S)N-55×30	×(S)N-75×30	X(S)N-110×30
Total volume of mixing chamber			45	55	75	25	170	250
Workingvolumeofmixingchamber		L	20	25	35	55	75	110

Driving motor power		KW	37	37	55	75	10	185
Tilting motor power		KW	1.5	1.5	22	2.2	3	5.5
Tilting angle			140	140	40	40	40	140
Rotational speed ofthe ntarfontirear)		r/min	32/27	32/27	30/24.5	30245	30/24.5	3024.5

Pressure of compressed air		Mpa	0.6～0.8	0.6～0.8	0.5～0.8	06- 0.8	0.6～0.8	0.6～0.8
Capacity of compressed air		m3/min	≥0.7	≥0.7	≥0.9	≥1.0	1.0	≥1.5

Pressure of cooling wate		Mpa	0.2～0.4	0.2～0.4	0.3～04	0.3~0.4	0.3～0.4	0.3～0.4
Dimensions	L	mm	2675	2675	3200	3230	3325	4075

	W	mm	1650	1650	900	927	2615	2712
	H	mm	2560	2560	2950	2958	3105	3580

Gross weight			-4	-4.5	~6.3	7.1	9.5	~14.9
