The EVA sheet foaming press is used in the production of a variety of everyday items including foam for slippers, foam sheet and insulation materials.

(1)
Products
EVA foaming vulcanizing press
EVA foaming vulcanizing press

EVA Foaming Sheet Machine

Product Summary: EVA foaming vulcanizing press

Function/performance characteristics:

Produce various EVA foam slippers,foam sheet,insulation materials,sports protective material, ife jackets,sponges and other thermoset rubberproducts"

Small temperature difference,reliable pressure performance,automaticallypressure

com-pensaion during curing process"

Product Category: Column Vulcanizing Press

Description

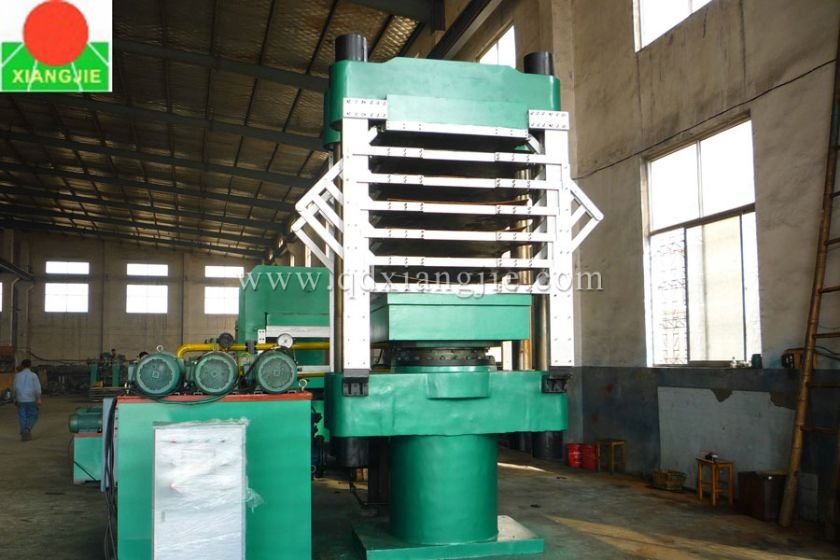

eva-foaming-machine_0001


The Main Technical Parameter

TypeXLB-Q1200×1250XLB-DQ1500×1500
Total Pressure(Tons)800 1500
Plate Size(mm)1200×1250×701500×1500×75
Daylight(mm)150 150
Layers
Piston Stroke(mm)900 750
Close Mould Speed(mm/s)≥40≥40
Open Mould Speed(mm/s)≥200≥200
Cylinder Diameter(mm)φ750φ1000
Motor Power (kw)15×2+1122×2+11


We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.


Application

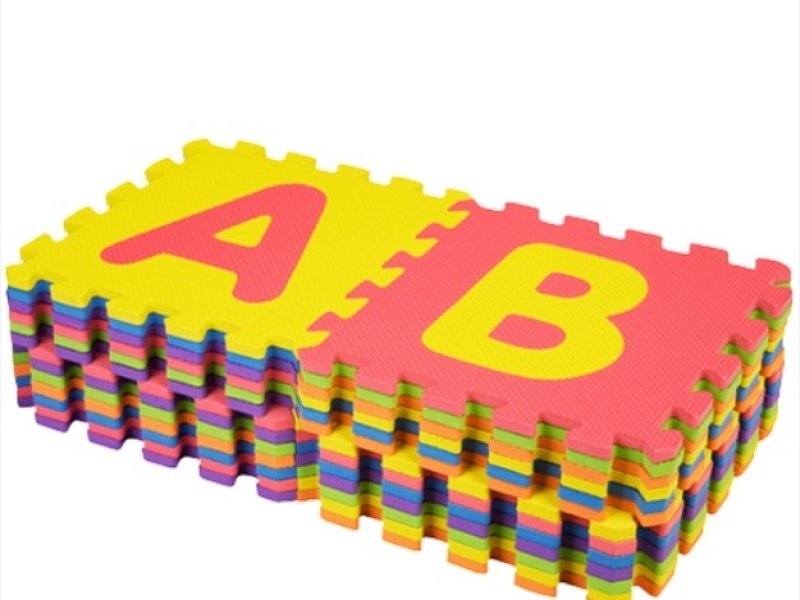

  • eva-floor-mat_003

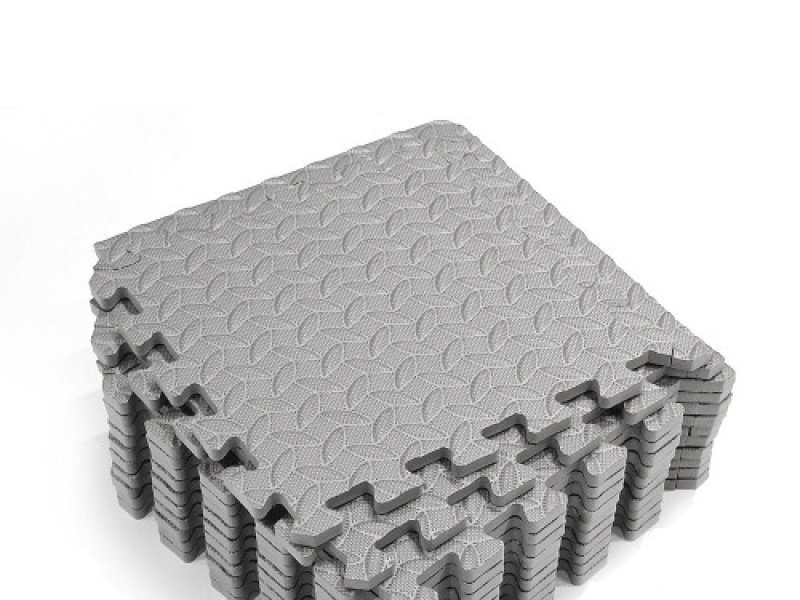

  • eva-floor-mat_002

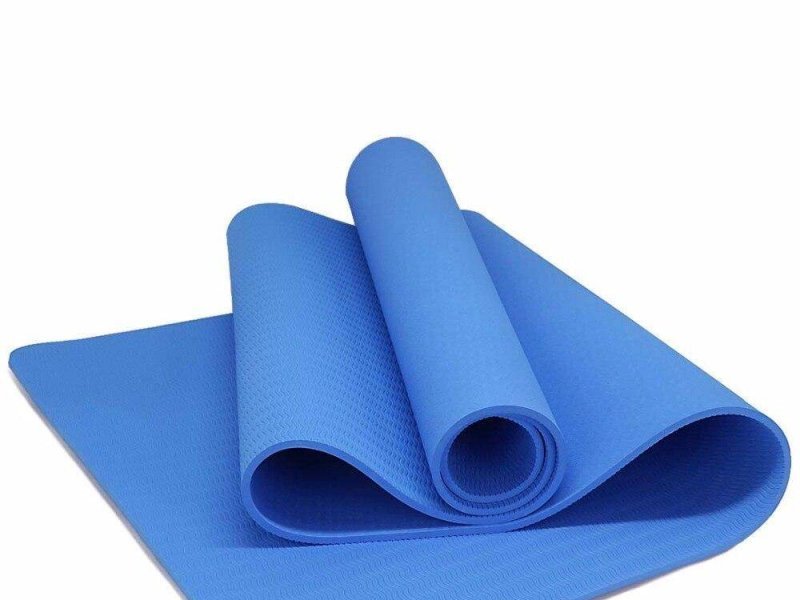

  • eva-floor-mat_001
