Rubber Open Mixing Mill

(1)
Products
Open-Mill-XK-400
Open-Mill-XK-400

Rubber Open Mixing Mill

Product Category: Others

Description

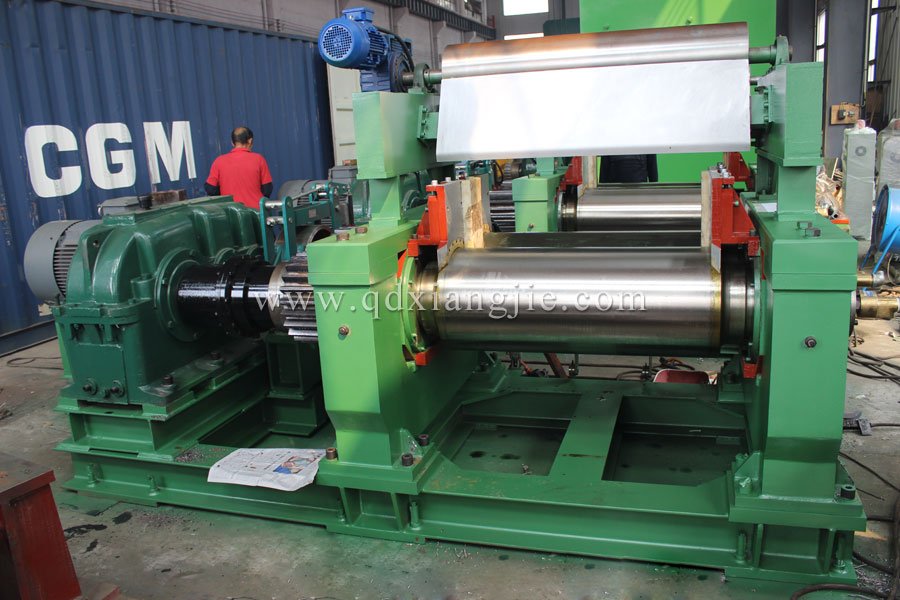

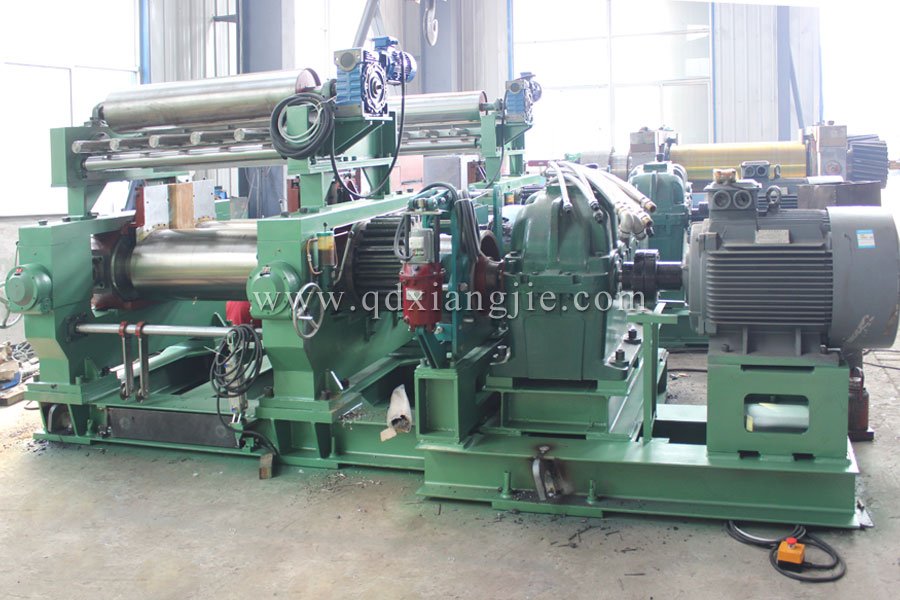

Open-Mill-XK-460    Open-Mill-XK-460

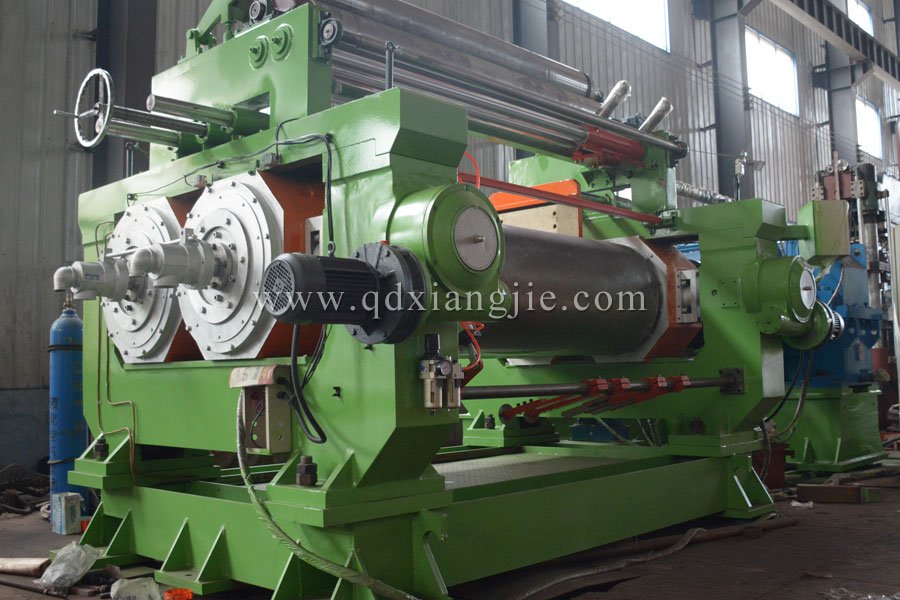

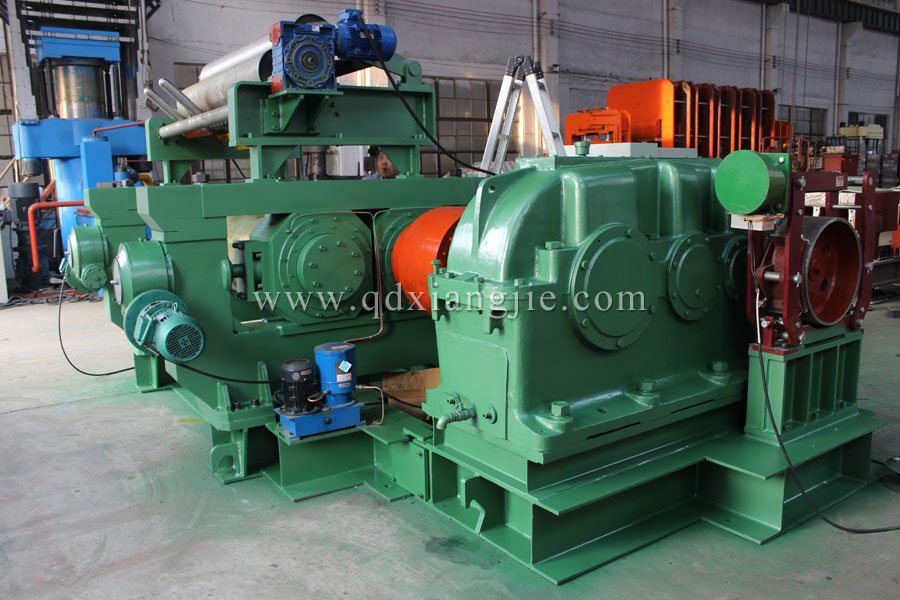

Open-Mill-XK-560    Open-Mill-XK-660


The Main Technical Parameter

ModelXK-160 ——XK-250 ——XK-360 ——XK-400 XKY-400XK-450 XKY-450XK-550 XKY-550XK-610 XKY-610XK-660 XKY-660XK-710 XKY-710XK-760 ——XK-810 ——
Roll dia(mm)160250360400450550610660710760810
Roll working length(mm)32062090010001200153019302130220024002540
Frontroll linear speed for open mill(m/min)916.316.718.6521.82830.52831.9————
Frontroll linear speed tor sheeting machine(m/min)——————21.925.6313031.6
30.5
30.263030
Speed ratio of rolls1:1.35
——
1:1.1
——
1:1.251:1.27
1:1.08
1:1.27
1:1.08
1:1.2
1:1.09
1:1.1
1:1.09
1:1.24
1:1.09
1:1.13
1:1.51
1:1.09
1:1.09
——
1:1.09
——
Max roll space(mm)4.58101012161515151515
Feeding capacity(kg)1-210-1520-2518-355050-65140165190270350
Motor power(KW)AC5.5AC18.5AC30AC45AC55AC110AC160AC185/250AC280AC355AC500
Overail dmensionsL(mm)11333200420044715005630065756700818575008500
W(mm)9201115178018501790223029103400391042004900
H(mm)13941345176017601830190020002100227022002400
Approx weight(t)~2~3.2~7.5~9~12.8~21~36~40~59~64~80
