1250*1250 solid tire vulcanizer equipment test



Equipment use: This machine is mainly used for the vulcanization of solid tires, and each layer produces 4 tires at the same time. This machine adopts a frame structure and is powered by the hydraulic system to drive the platform to rise (using auxiliary cylinders to rise and fall quickly), which is easy to produce sufficient clamping force, and at the same time make the abrasive tool reach a certain temperature, and realize the vulcanization molding of solid tires within a certain period of time.


Composition: The whole system is composed of the main engine, auxiliary equipment, hydraulic system, electronic control system, thermal insulation system and other parts, and the hot plate adopts the heat conduction oil heating method, and the maximum heating temperature is 180 °C.


Technical parameters


pressure

700 tons

Hot plate deck

1250*1250*80mm (heating method: heat transfer oil)
Hot plate inner hole diameter: 30mm

Pallet thickness

28mm

Pressure per unit area

4.48Mpa

Number of layers

2 floors

Working spacing (hot plate plus pallet)

480mm

Cylinder stroke

540mm

Fast clamping speed

≥20mm/s

Slow clamping speed

≥1-3mm/s

Mould opening speed

≥20mm/s

Cylinder diameter

Φ700mm (20mm heat shield on the upper part)

Auxiliary cylinder specifications

Φ150mm×2pcs

Hydraulic system pressure

18.2Mpa

Minimum mold thickness

210mm

Heating method

Heat transfer fluid

The maximum heating temperature of the hot plate

180℃

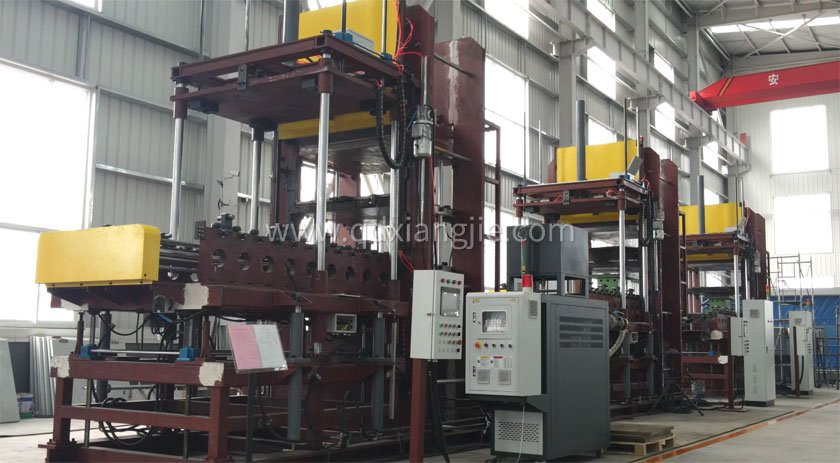

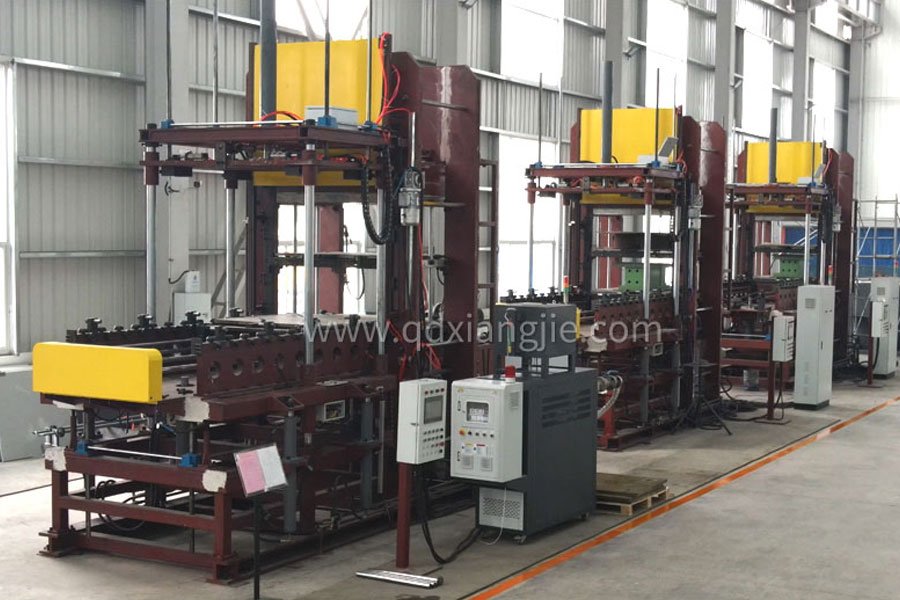

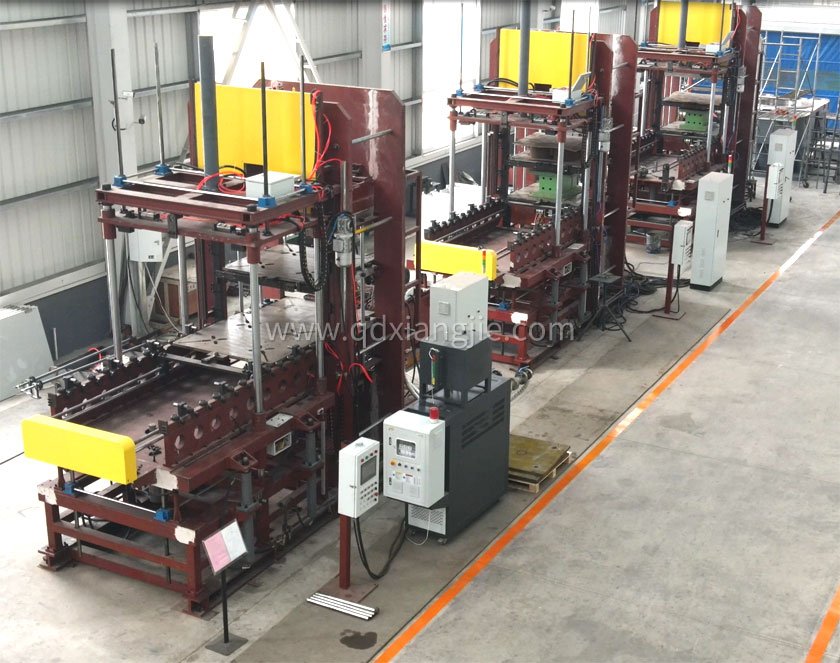

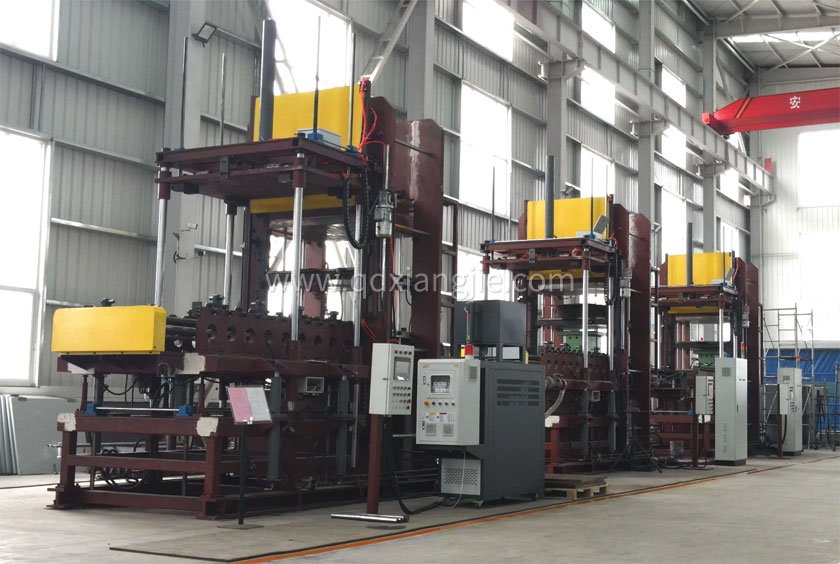

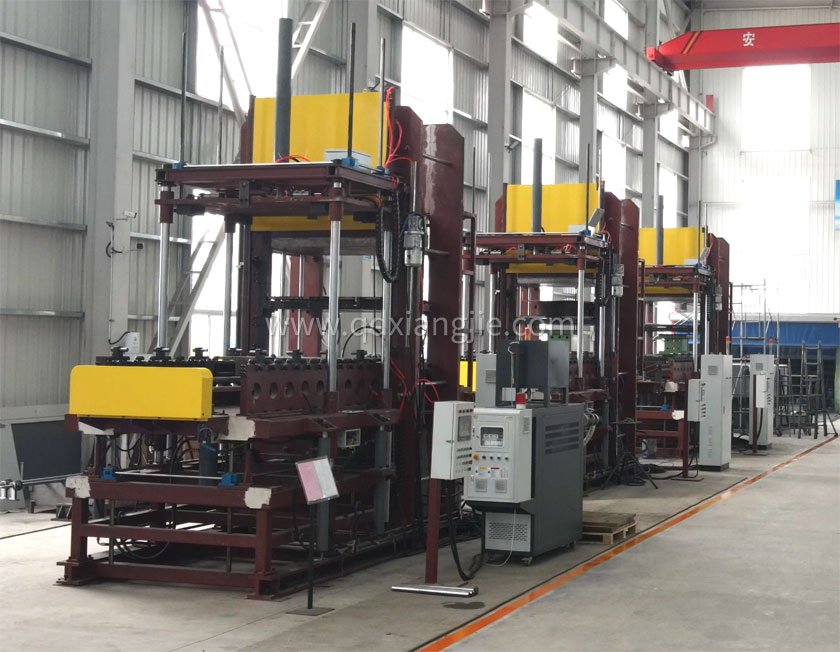

1250*1250 solid tire vulcanizing machine debugging video

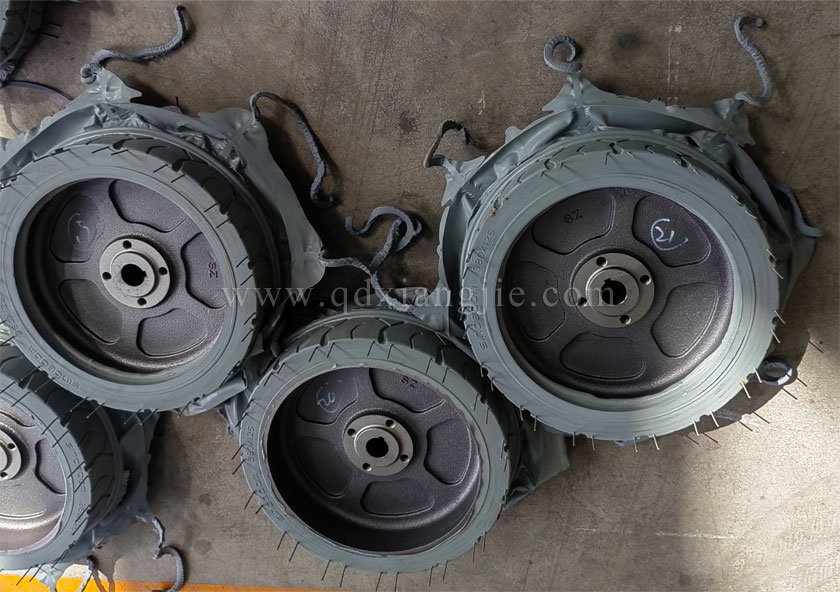

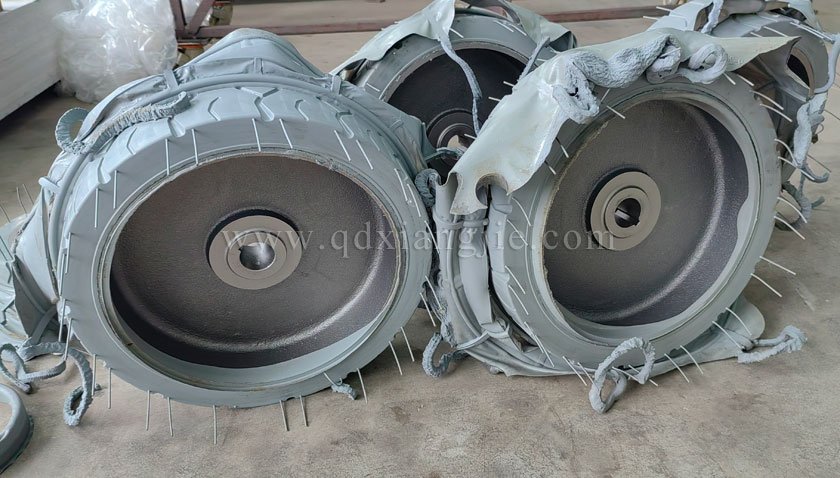

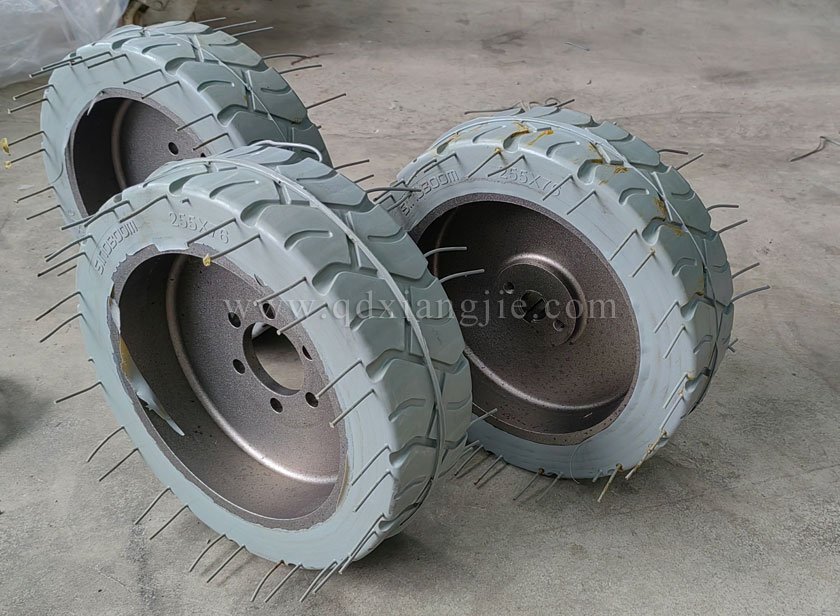

1250*1250 solid tire vulcanizing machine finished product display
